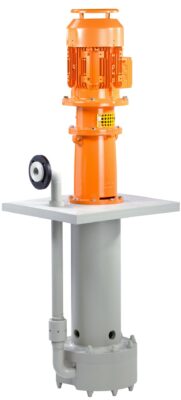

Heavy duty, dry-run proof vertical pump
The Munsch TPC-M series of very heavy duty, non-metallic vertical cantilever pumps are the solution of choice whenever it comes to the most demanding applications pumping solids-laden acids, alkalis or chemically contaminated effluents or when there is a risk of prolonged dry running. Designed to pump directly from sumps, pump tanks, storage tanks or basins.
Standard vertical setting depths of 600mm, 800mm and 1000mm respectively can be extended to 3400mm by a suction pipe.
Typical applications include electroplating plants, steel and stainless-steel pickling lines, evaporation and regeneration units, flue gas cleaning systems in waste incineration facilities as well as exhaust air cleaning and industrial waste water treatment.
Available in Polypropylene, PE-UHMW and PVDF. Also available with ATEX rating if required as the pumps can meet the requirements of EU Directive No. 94/9/EG
Performance Data
- Pump capacity: up to 250 m³/h
- Total differential head: up to 65 m
- Operating temperature: 0°C up to +100 °C
- Operating pressure: up to 10 bar
- Diameter of discharge nozzle: DN 25 up to DN 150
- Motor rating: up to 45 kW
- Solids concentration: up to 5%
- Maximum allowable particle size: up to 24 mm
Features and Benefits
- Pump casing, casing cover and suspension pipe made of solid plastic with ample abrasion allowance to give maximum compatibility to corrosive liquids
- The column pipe and discharge flange can be rotated to virtually any position
- Impeller available as closed, semi-open and vortex
- Anti-friction bearing is installed in the lantern accommodating high loads even under part load conditions
Vertical cantilever pump specifications
- 50-32-125
- 50-32-160
- 50-32-200
- 65-40-160
- 65-40-200
- 65-50-125
- 80-50-200
- 80-65-160
- 80-50-250
- 80-50-315
- 100-65-200
- 100-65-250
- 125-80-200
- 125-100-200
- Main material: PP, PE-UHMW and PVDF
- Impeller: PP, PE-UHMW and PVDF
- Shaft: Stainless steel
- Bearing lantern: GGG
- Secondary seal: FPM
- Suction strainer
- Setting depth can be extended by suction pipe
- Motor overload switch
Spares and Service
To help you get the most out of your fluid transfer solutions, we hold significant stock of a broad range of pump spares kits and spare parts, as well as offering routine maintenance, repairs, and priority services.
